mpi.h File Reference

MPI Support Module. More...

#include <stdbool.h>
#include <mpi.h>
#include <core/core.h>
#include <communication/wnd.h>
#include <statistics/statistics.h>

Include dependency graph for mpi.h:

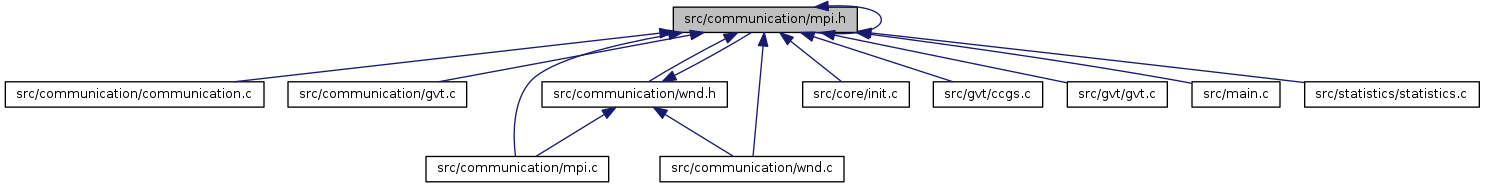

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	lock_mpi()   {if(!mpi_support_multithread) spin_lock(&mpi_lock);}
	This macro takes a global lock if multithread support is not available from MPI.
#define	unlock_mpi()   {if(!mpi_support_multithread) spin_unlock(&mpi_lock);}
	This macro releases a global lock if multithreaded support is not available from MPI.

Functions
void	mpi_init (int *argc, char ***argv)
	Initialize MPI subsystem. More...
void	inter_kernel_comm_init (void)
	Initialize inter-kernel communication. More...
void	inter_kernel_comm_finalize (void)
	Finalize inter-kernel communication. More...
void	mpi_finalize (void)
	Finalize MPI. More...
void	syncronize_all (void)
	Syncronize all the kernels. More...
void	send_remote_msg (msg_t *msg)
	Send a message to a remote LP. More...
bool	pending_msgs (int tag)
	Check if there are pending messages. More...
void	receive_remote_msgs (void)
	Receive remote messages. More...
bool	is_request_completed (MPI_Request *)
	check if an MPI request has been completed More...
bool	all_kernels_terminated (void)
	Check if all kernels have reached the termination condition. More...
void	broadcast_termination (void)
	Notify all the kernels about local termination. More...
void	collect_termination (void)
	Check if other kernels have reached the termination condition. More...
void	mpi_reduce_statistics (struct stat_t *, struct stat_t *)
	Invoke statistics reduction. More...

Variables
bool	mpi_support_multithread
	Flag telling whether the MPI runtime supports multithreading.
spinlock_t	mpi_lock

Detailed Description

MPI Support Module.

MPI Support Module

Copyright

Copyright (C) 2008-2019 HPDCS Group https://hpdcs.github.io

This file is part of ROOT-Sim (ROme OpTimistic Simulator).

ROOT-Sim is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; only version 3 of the License applies.

ROOT-Sim is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with ROOT-Sim; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA

Author

Tommaso Tocci

Definition in file mpi.h.

Function Documentation

bool all_kernels_terminated

(

void

)

Check if all kernels have reached the termination condition.

This function checks whether all threads have been informed of the fact that the simulation should be halted, and they have taken proper actions to terminate. Once this function confirms this condition, the process can safely exit.

Warning

This function can be called only after a call to broadcast_termination()

Returns

true if all the kernel have reached the termination condition

Definition at line 270 of file mpi.c.

void broadcast_termination

(

void

)

Notify all the kernels about local termination.

This function is used to inform all other simulation kernel instances that this kernel is ready to terminate the simulation.

Warning

This function is not thread safe and should be used only by one thread at a time

Note

This function can be used concurrently with other MPI functions (hence its thread unsafety)

This function can be called multiple times, but the actual broadcast operation will be executed only on the first call.

Definition at line 327 of file mpi.c.

void collect_termination

(

void

)

Check if other kernels have reached the termination condition.

This function accumulates termination acknoledgements from remote kernels, and updates the terminated counter.

Note

This function can be called at any point of the simulation, but it will be effective only after that broadcast_termination() has been called locally.

This function is thread-safe

Definition at line 289 of file mpi.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void inter_kernel_comm_finalize

(

void

)

Finalize inter-kernel communication.

This function shutdown the subsystems associated with inter-kernel communication.

Definition at line 562 of file mpi.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void inter_kernel_comm_init

(

void

)

Initialize inter-kernel communication.

This function initializes inter-kernel communication, by initializing all the other communication subsystems.

Definition at line 545 of file mpi.c.

Here is the call graph for this function:

Here is the caller graph for this function:

bool is_request_completed

(

MPI_Request *

req

)

check if an MPI request has been completed

This function checks whether the operation associated with the specified MPI Request has been completed or not.

Note

This function is thread-safe.

Parameters

req	A pointer to the MPI_Request to check for completion

Returns

true if the operation associated with req is complete, false otherwise.

Definition at line 144 of file mpi.c.

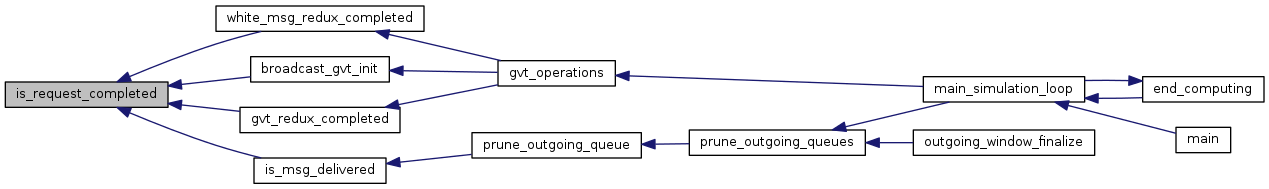

Here is the caller graph for this function:

void mpi_finalize

(

void

)

Finalize MPI.

This function shutdown the MPI subsystem

Note

Only the master thread on each simulation kernel is expected to call this function

Definition at line 578 of file mpi.c.

Here is the caller graph for this function:

void mpi_init	(	int *	argc,
		char ***	argv
	)

Initialize MPI subsystem.

This is mainly a wrapper of MPI_Init, which contains some boilerplate code to initialize datastructures.

Most notably, here we determine if the library which we are using has suitable multithreading support, and we setup the MPI Communicator which will be used later on to exhange model-specific messages.

Definition at line 514 of file mpi.c.

Here is the caller graph for this function:

void mpi_reduce_statistics	(	struct stat_t *	global,
		struct stat_t *	local
	)

Invoke statistics reduction.

This function is a simple wrapper of an MPI_Reduce operation, which uses the custom reduce operation implemented in reduce_stat_vector() to gather reduced statistics in the master kernel (rank 0).

Parameters

global	A pointer to a struct stat_t where reduced statistics will be stored. The reduction only takes place at rank 0, therefore other simulation kernel instances will never read actual meaningful information in that structure.
local	A pointer to a local struct stat_t which is used as the source of information for the distributed reduction operation.

Definition at line 428 of file mpi.c.

Here is the caller graph for this function:

bool pending_msgs

(

int

tag

)

Check if there are pending messages.

This function tells whether there is a pending message in the underlying MPI library coming from any remote simulation kernel instance. If passing a tag different from MPI_ANY_TAG to this function, a specific tag can be extracted.

Messages are only extracted from MPI_COMM_WORLD communicator. This is therefore only useful in startup/shutdown operations (this is used indeed to initiate GVT and conclude the distributed simulation shutdown).

Note

This function is thread-safe.

Parameters

tag	The tag of the messages to check for availability.

Returns

true if a pending message tagged with tag is found, false otherwise.

Definition at line 122 of file mpi.c.

Here is the caller graph for this function:

void receive_remote_msgs

(

void

)

Receive remote messages.

This function extracts from MPI events destined to locally-hosted LPs. Only messages to LP can be extracted here, because the probing is done towards the msg_comm communicator.

A message which is extracted here is placed (out of order) in the bottom half of the destination LP, for later insertion (in order) in the input queue.

This function will try to extract as many messages as possible from the underlying MPI library. In particular, once this function is called, it will return only after that no message can be found in the MPI library, destined to this simulation kernel instance.

Currently, this function is called once per main loop iteration. Doing more calls might significantly imbalance the workload of some worker thread.

Note

This function is thread-safe.

Definition at line 208 of file mpi.c.

Here is the call graph for this function:

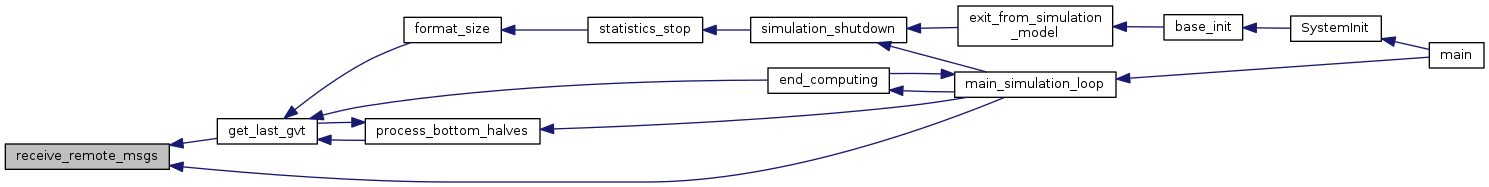

Here is the caller graph for this function:

void send_remote_msg

(

msg_t *

msg

)

Send a message to a remote LP.

This function takes in charge an event to be delivered to a remote LP. The sending operation is non-blocking: to this end, the message is registered into the outgoing queue of the destination kernel, in order to allow MPI to keep track of the sending operation.

Also, the message being sent is registered at the sender thread, to keep track of the white/red message information which is necessary to correctly reduce the GVT value.

Note

This function is thread-safe.

Parameters

msg	A pointer to the msg_t keeping the message to be sent remotely

Definition at line 169 of file mpi.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void syncronize_all

(

void

)

Syncronize all the kernels.

This function can be used as syncronization barrier between all the threads of all the kernels.

The function will return only after all the threads on all the kernels have already entered this function.

We create a new communicator here, to be sure that we synchronize exactly in this function and not somewhere else.

Warning

This function is extremely resource intensive, wastes a lot of cpu cycles, and drops performance significantly. Avoid using it as much as possible!

Definition at line 492 of file mpi.c.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

spinlock_t mpi_lock

This global lock is used by the lock/unlock_mpi macro to control access to MPI interface. If proper MPI threading support is available from the runtime, then it is not used.

Definition at line 55 of file mpi.c.
