Dynamic Memory Logger and Restorer (DyMeLoR) More...

#include <math.h>
#include <string.h>
#include <core/core.h>
#include <datatypes/bitmap.h>
#include <mm/state.h>
#include <core/timer.h>

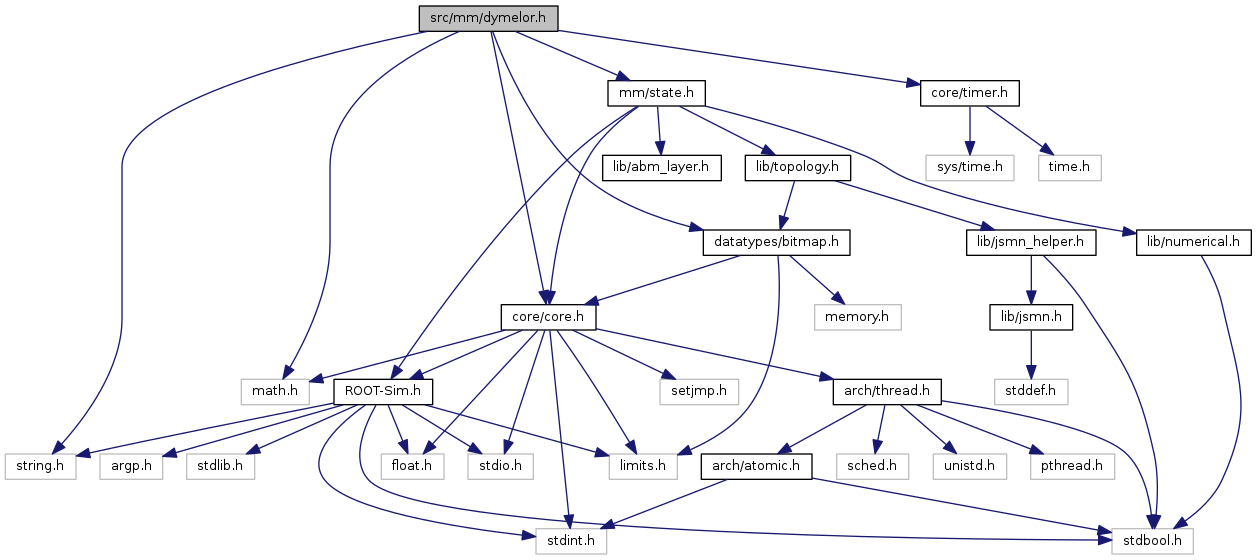

Include dependency graph for dymelor.h:

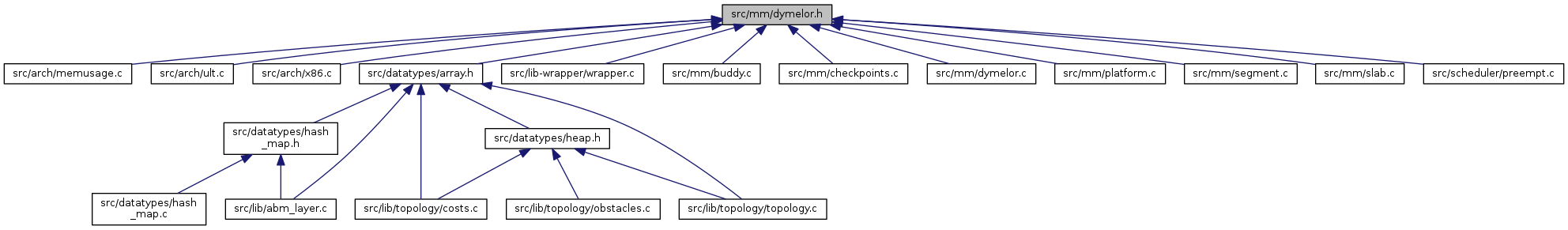

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	_malloc_area
	This structure let DyMeLoR handle one malloc area (for serving given-size memory requests) More...

struct	_malloc_state
	Definition of the memory map. More...

struct	segment

struct	slab_header

struct	slab_chain

struct	buddy

Macros
#define	LP_PREALLOCATION_INITIAL_ADDRESS (void *)0x0000008000000000

#define	MIN_CHUNK_SIZE 128U

#define	MAX_CHUNK_SIZE 4194304

#define	NUM_AREAS (log2(MAX_CHUNK_SIZE) - log2(MIN_CHUNK_SIZE) + 1)

#define	MAX_NUM_AREAS (NUM_AREAS * 32)

#define	MAX_LIMIT_NUM_AREAS MAX_NUM_AREAS

#define	MIN_NUM_CHUNKS 512

#define	MAX_NUM_CHUNKS 4096

#define	MAX_LOG_THRESHOLD 1.7

#define	MIN_LOG_THRESHOLD 1.7

#define	INCREMENTAL_GRANULARITY 50

#define	LITTLE_SIZE 32

#define	CHECK_SIZE 0.25

#define	GET_CACHE_LINE_NUMBER(P) ((unsigned long)((P >> 4) & (CACHE_SIZE - 1)))

#define	SET_LOG_MODE_BIT(m_area) (((malloc_area*)(m_area))->chunk_size \|= (1UL << 0))

#define	RESET_LOG_MODE_BIT(m_area) (((malloc_area*)(m_area))->chunk_size &= ~(1UL << 0))

#define	CHECK_LOG_MODE_BIT(m_area) (((malloc_area*)(m_area))->chunk_size & (1UL << 0))

#define	SET_AREA_LOCK_BIT(m_area) (((malloc_area*)(m_area))->chunk_size \|= (1UL << 1))

#define	RESET_AREA_LOCK_BIT(m_area) (((malloc_area*)(m_area))->chunk_size &= ~(1UL << 1))

#define	CHECK_AREA_LOCK_BIT(m_area) (((malloc_area*)(m_area))->chunk_size & (1UL << 1))

#define	UNTAGGED_CHUNK_SIZE(m_area) (((malloc_area*)(m_area))->chunk_size & ~((1UL << 0) \| (1UL << 1)))

#define	POWEROF2(x) (1UL << (1 + (63 - __builtin_clzl((x) - 1))))

#define	IS_POWEROF2(x) ((x) != 0 && ((x) & ((x) - 1)) == 0)

#define	PER_LP_PREALLOCATED_MEMORY (262144L * PAGE_SIZE)

#define	is_incremental(ckpt) (((malloc_state *)ckpt)->is_incremental == true)

#define	get_top_pointer(ptr) ((unsigned long long )((char )ptr - sizeof(unsigned long long)))

#define	get_area_top_pointer(ptr) ( (malloc_area *)(get_top_pointer(ptr)) )

#define	get_area(ptr) ( *(get_area_top_pointer(ptr)) )

#define	PER_LP_PREALLOCATED_MEMORY (262144L * PAGE_SIZE)

#define	BUDDY_GRANULARITY PAGE_SIZE

#define	PAGE_SIZE

#define	BUDDY_BLOCK_SIZE_EXP 12

Typedefs
typedef struct _malloc_area	malloc_area

typedef struct _malloc_state	malloc_state

Functions
void	set_force_full (unsigned int, int)

void	dirty_mem (void *, int)

size_t	get_state_size (int)

size_t	get_log_size (malloc_state *)

size_t	get_inc_log_size (void *)

int	get_granularity (void)

size_t	dirty_size (unsigned int, void , double )

malloc_state *	malloc_state_init (void)

void *	do_malloc (struct lp_struct *, size_t)

void	do_free (struct lp_struct , void ptr)

void *	allocate_lp_memory (struct lp_struct *, size_t)

void	free_lp_memory (struct lp_struct , void )

void *	__wrap_malloc (size_t)

void	__wrap_free (void *)

void *	__wrap_realloc (void *, size_t)

void *	__wrap_calloc (size_t, size_t)

struct buddy *	buddy_new (size_t requested_size)

void	buddy_destroy (struct buddy *self)

void *	allocate_buddy_memory (struct buddy self, void base_mem, size_t requested_size)

void	free_buddy_memory (struct buddy self, void base_mem, void *ptr)

Variables
size_t	__page_size

Detailed Description

Dynamic Memory Logger and Restorer (DyMeLoR)

LP's memory manager.

Copyright: Copyright (C) 2008-2019 HPDCS Group https://hpdcs.github.io

This file is part of ROOT-Sim (ROme OpTimistic Simulator).

ROOT-Sim is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; only version 3 of the License applies.

ROOT-Sim is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with ROOT-Sim; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA

Author: Roberto Toccaceli; Alessandro Pellegrini; Roberto Vitali; Francesco Quaglia

Date: April 02, 2008

Definition in file dymelor.h.

Macro Definition Documentation

#define PAGE_SIZE

Value:

({ \
            if(unlikely(__page_size == 0))\
                __page_size = getpagesize();\
            __page_size;\
          })

Definition at line 148 of file dymelor.h.

Function Documentation

void* __wrap_calloc	(	size_t	nmemb,
		size_t	size
	)

This is the wrapper of the real stdlib calloc(). Whenever the application level software calls calloc, the call is redirected to this piece of code which relies on wrap_malloc

Author: Roberto Vitali

Parameters

nmemb	The number of elements to be allocated
size	The size of each allocated member

Returns: A pointer to the newly allocated buffer

Definition at line 664 of file dymelor.c.

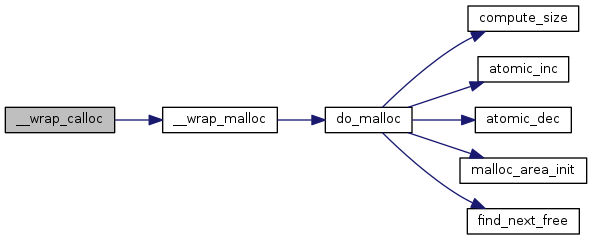

Here is the call graph for this function:

void __wrap_free ( void * ptr )

This is the wrapper of the real stdlib free(). Whenever the application level software calls free, the call is redirected to this piece of code which will set the chunk in the corresponding malloc_area as not allocated.

For further information, please see the paper: R. Toccaceli, F. Quaglia DyMeLoR: Dynamic Memory Logger and Restorer Library for Optimistic Simulation Objects with Generic Memory Layout Proceedings of the 22nd Workshop on Principles of Advanced and Distributed Simulation 2008

Author: Roberto Toccaceli; Francesco Quaglia

Parameters

ptr	A memory buffer to be free'd

Definition at line 589 of file dymelor.c.

Here is the caller graph for this function:

void* __wrap_malloc ( size_t size )

This is the wrapper of the real stdlib malloc(). Whenever the application level software calls malloc, the call is redirected to this piece of code which uses the memory preallocated by the DyMeLoR subsystem for serving the request. If the memory in the malloc_area is exhausted, a new one is created, relying on the stdlib malloc. In future releases, this wrapper will be integrated with the Memory Management subsystem, which is not yet ready for production.

Author: Roberto Toccaceli; Francesco Quaglia

Parameters

size	Size of the allocation

Returns: A pointer to the allocated memory

Definition at line 553 of file dymelor.c.

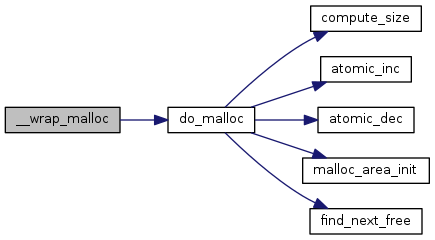

Here is the call graph for this function:

Here is the caller graph for this function:

void* __wrap_realloc	(	void *	ptr,
		size_t	size
	)

This is the wrapper of the real stdlib realloc(). Whenever the application level software calls realloc, the call is redirected to this piece of code which rely on wrap_malloc

Author: Roberto Vitali

Parameters

ptr	The pointer to be buffer to be reallocated
size	The size of the allocation

Returns: A pointer to the newly allocated buffer

Definition at line 615 of file dymelor.c.

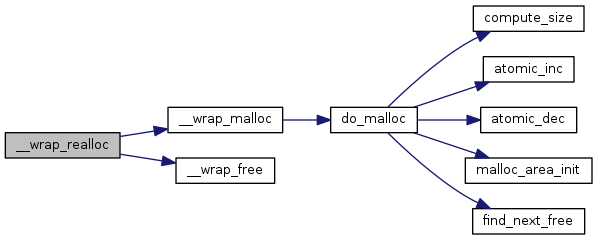

Here is the call graph for this function:

struct buddy* buddy_new ( size_t requested_size )

allocate a new buddy structure

Parameters

lp	A pointer to the lp_struct of the LP from whose buddy we are allocating memory
requested_size	size in bytes of the memory area to manage

Returns: pointer to the allocated buddy structure

Definition at line 75 of file buddy.c.

void dirty_mem	(	void *	base,
		int	size
	)

This function marks a memory chunk as dirty. It is invoked from assembly modules invoked by calls injected by the instrumentor, and from the third-party library wrapper. Invocations from other parts of the kernel should be handled with great care.

Author: Alessandro Pellegrini; Roberto Vitali

Parameters

base	The initial to the start address of the update
size	The number of bytes being updated

Definition at line 445 of file dymelor.c.

void* do_malloc	(	struct lp_struct *	,
		size_t
	)

Definition at line 167 of file dymelor.c.

Here is the call graph for this function:

Here is the caller graph for this function:

size_t get_log_size ( malloc_state * logged_state )

This function returns the whole size of a state. It can be used as the total size to pack a log

Author: Alessandro Pellegrini; Roberto Vitali

Parameters

logged_state The pointer to the log, or to the state

Returns: The whole size of the state (metadata included)

Definition at line 526 of file dymelor.c.

Here is the caller graph for this function:

malloc_state* malloc_state_init ( void )

This function inizializes a malloc_state.

Definition at line 78 of file dymelor.c.

Here is the call graph for this function:
