atomic.h File Reference

Atomic operations. More...

#include <stdbool.h>
#include <stdint.h>

Include dependency graph for atomic.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	atomic_t
struct	spinlock_t

Macros
#define	atomic_read(v)   ((v)->count)
	Read operation on an atomic counter.
#define	atomic_set(v, i)   (((v)->count) = (i))
	Set operation on an atomic counter.
#define	spinlock_init(s)   ((s)->lock = 0)
	Spinlock initialization.

Functions
bool	iCAS (volatile uint32_t *ptr, uint32_t oldVal, uint32_t newVal)
int	atomic_test_and_set (int *)
void	atomic_inc (atomic_t *)
void	atomic_dec (atomic_t *)
int	atomic_inc_and_test (atomic_t *v)
bool	spin_trylock (spinlock_t *s)
void	spin_unlock (spinlock_t *s)
void	spin_lock (spinlock_t *s)

Detailed Description

Atomic operations.

This module implements atomic and non-blocking operations used within ROOT-Sim to coordinate threads and processes (on shared memory).

Copyright

Copyright (C) 2008-2019 HPDCS Group https://hpdcs.github.io

This file is part of ROOT-Sim (ROme OpTimistic Simulator).

ROOT-Sim is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; only version 3 of the License applies.

ROOT-Sim is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with ROOT-Sim; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA

Author

Alessandro Pellegrini

Date

Jan 25, 2012

Definition in file atomic.h.

Function Documentation

void atomic_dec ( atomic_t *  v )

inline

This function implements (on x86-64 architectures) the atomic dec operation. It decrements the atomic counter 'v' by 1 unit

Parameters

v	the atomic counter which is the destination of the operation

Definition at line 103 of file x86.c.

Here is the caller graph for this function:

void atomic_inc ( atomic_t *  v )

inline

This function implements (on x86-64 architectures) the atomic inc operation. It increments the atomic counter 'v' by 1 unit

Parameters

v	the atomic counter which is the destination of the operation

Definition at line 90 of file x86.c.

Here is the caller graph for this function:

int atomic_inc_and_test ( atomic_t *  v )

inline

This function implements (on x86-64 architectures) the atomic dec operation. It decrements the atomic counter 'v' by 1 unit

Parameters

v	the atomic counter which is the destination of the operation

Returns

true if the counter became zero

Definition at line 118 of file x86.c.

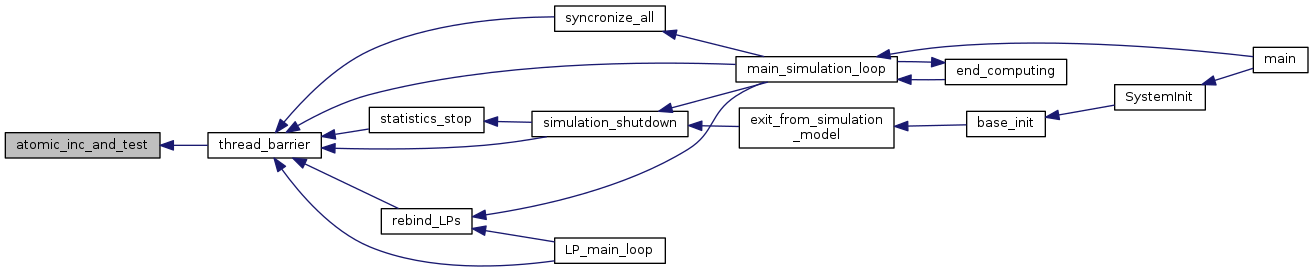

Here is the caller graph for this function:

int atomic_test_and_set ( int *  b )

inline

This function implements the atomic_test_and_set on an integer value, for x86-64 archs

Parameters

b	the counter there to perform the operation

Returns

true if the int value has been set, false otherwise

Definition at line 71 of file x86.c.

Here is the caller graph for this function:

bool iCAS ( volatile uint32_t *  ptr, uint32_t  oldVal, uint32_t  newVal  )

inline

This function implements a compare-and-swap atomic operation on x86-64 for integers

Parameters

ptr	the address where to perform the CAS operation on
oldVal	the old value we expect to find before swapping
newVal	the new value to place in ptr if ptr contains oldVal

Returns

true if the CAS succeeded, false otherwise

Definition at line 49 of file x86.c.

Here is the caller graph for this function:

void spin_lock ( spinlock_t *  s )

inline

This function implements (on x86-64 architectures) a spinlock operation.

Parameters

s	the spinlock on which to spin

Definition at line 135 of file x86.c.

Here is the caller graph for this function:

bool spin_trylock ( spinlock_t *  s )

inline

This function implements (on x86-64 architectures) a trylock operation.

Parameters

s	the spinlock to try to acquire

Definition at line 151 of file x86.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void spin_unlock ( spinlock_t *  s )

inline

This function implements (on x86-64 architectures) a spin unlock operation.

Parameters

s	the spinlock to unlock

Definition at line 161 of file x86.c.

Here is the caller graph for this function:
