Distributed GVT Support module. More...

#include <communication/communication.h>
#include <communication/mpi.h>
#include <communication/gvt.h>

Include dependency graph for gvt.c:

Functions
void	gvt_comm_init (void)
	Initialize the MPI-based distributed GVT reduction submodule. More...

void	gvt_comm_finalize (void)
	Shut down the MPI-based distributed GVT reduction submodule. More...

void	enter_red_phase (void)
	Make a thread enter into red phase. More...

void	exit_red_phase (void)
	Make a thread exit from red phase. More...

void	join_white_msg_redux (void)
	Join the white message reduction collective operation. More...

bool	white_msg_redux_completed (void)
	Test completion of white message reduction collective operation. More...

void	wait_white_msg_redux (void)
	Wait for the completion of wait message reduction. More...

bool	all_white_msg_received (void)
	Check if white messages are all received. More...

void	flush_white_msg_recv (void)
	Reset received white messages. More...

void	flush_white_msg_sent (void)
	Reset sent white messages. More...

void	broadcast_gvt_init (unsigned int round)
	Initiate a distributed GVT. More...

bool	gvt_init_pending (void)
	Check if there are pending GVT-init messages around. More...

void	gvt_init_clear (void)
	Forcely extract GVT-init message from MPI. More...

void	join_gvt_redux (simtime_t local_vt)
	Reduce the GVT value. More...

bool	gvt_redux_completed (void)
	Check if final GVT reduction is complete. More...

simtime_t	last_reduced_gvt (void)
	Return the last GVT value. More...

void	register_outgoing_msg (const msg_t *msg)
	Register an outgoing message, if necessary. More...

void	register_incoming_msg (const msg_t *msg)
	Register an incoming message, if necessary. More...

Variables
phase_colour *	threads_phase_colour

simtime_t *	min_outgoing_red_msg
	Minimum time among all the outgoing red messages for each thread.

volatile atomic_t *	white_msg_recv

static atomic_t	white_0_msg_recv

static atomic_t	white_1_msg_recv

static atomic_t *	white_msg_sent

static int *	white_msg_sent_buff
	Temporary structure used for the MPI collective primitives.

static int	expected_white_msg

static MPI_Request	white_count_req

static MPI_Comm	white_count_comm

static spinlock_t	white_count_lock

static MPI_Request	gvt_reduction_req

static MPI_Comm	gvt_reduction_comm

static spinlock_t	gvt_reduction_lock

static simtime_t	local_vt_buff

static simtime_t	reduced_gvt

static MPI_Request *	gvt_init_reqs

static unsigned int	gvt_init_round

Detailed Description

Distributed GVT Support module.

This module implements communication primitives to implement the asynchronous distributed GVT reduction algorithm described in:

T. Tocci, A. Pellegrini, F. Quaglia, J. Casanovas-García, and T. Suzumura,
“ORCHESTRA: An Asynchronous Wait-Free Distributed GVT Algorithm,”
in Proceedings of the 21st IEEE/ACM International Symposium on Distributed Simulation and Real Time Applications
2017

For a full understanding of the code, we encourage reading that paper.

Copyright: Copyright (C) 2008-2019 HPDCS Group https://hpdcs.github.io

This file is part of ROOT-Sim (ROme OpTimistic Simulator).

ROOT-Sim is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; only version 3 of the License applies.

ROOT-Sim is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with ROOT-Sim; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA

Author: Tommaso Tocci

Definition in file gvt.c.

Function Documentation

bool all_white_msg_received ( void )

Check if white messages are all received.

Check if the number of white message received is equal to the expected ones (retrieved through the white message reduction).

Returns: true if the expected amount of white messages has bee already received, false otherwise.

Definition at line 364 of file gvt.c.

Here is the caller graph for this function:

void broadcast_gvt_init ( unsigned int round )

Initiate a distributed GVT.

A call to this function sends to all kernel instances an asynchronous request to initiate the distributed protocol for GVT reduction.

If must be called by one single thread, and a consistent round value should be passed as an argument.

Parameters

round A counter telling what is the GVT round that we want to initiate. round must be strictly monotonic.

Definition at line 447 of file gvt.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void enter_red_phase ( void )

Make a thread enter into red phase.

Once this function returns, the calling thread will be turned red. The minimum timestamp of red messages sent by it will be reset.

Warning: Calling this function from a thread which is already in the red phase will cause a sanity check to immediately stop the simulation, as it will be no longer possible to ensure consistency in the GVT reduction.

Definition at line 259 of file gvt.c.

Here is the caller graph for this function:

void exit_red_phase ( void )

Make a thread exit from red phase.

Once this function returns, the calling thread will be turned white.

Warning: Calling this function from a thread which is already in the white phase will cause a sanity check to immediately stop the simulation, as it will be no longer possible to ensure consistency in the GVT reduction.

Definition at line 279 of file gvt.c.

Here is the caller graph for this function:

void flush_white_msg_recv ( void )

Reset received white messages.

This function is used to prepare for the next white phase of the execution. In particular, after that the correct number of white messages has been received, a call to this function will change the white phase counter pointed by white_msg_recv to either white_0_msg_recv or white_1_msg_recv, depending on the current phase which we are leaving.

Furthermore, the white message counter is reset to zero—it will be used in the next GVT round.

Warning: Calling this function if the correct number of white messages has been received will stop the simulation due to an inconsistency.

Definition at line 386 of file gvt.c.

Here is the caller graph for this function:

void flush_white_msg_sent ( void )

Reset sent white messages.

This function is used to prepare for the next white phase of the execution. In particular, after that all the threads have entered the red phase (this ensures that white message counter can be safely reset for all threads) the counters keeping the number of white messages sent to other simulation kernel instances are reset.

Warning: Calling this function if at least one thread is still in the white phase will stop the simulation due to an inconsistency.

Definition at line 417 of file gvt.c.

Here is the caller graph for this function:

void gvt_comm_finalize ( void )

Shut down the MPI-based distributed GVT reduction submodule.

This function is called just before shutting down the MPI subsystem. It frees all the data structures used to carry out the distributed GVT reduction protocol, and nicely tells MPI to wipe out everything that is no longer needed. Right after this, MPI will be shut down as well.

Definition at line 221 of file gvt.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void gvt_comm_init ( void )

Initialize the MPI-based distributed GVT reduction submodule.

This function is called after that the MPI subsystem is activated. Its goal is to initialize all the variable-sized data structures and MPI-related data structures which will be used while running the distributed GVT reduction protocol.

Definition at line 174 of file gvt.c.

Here is the caller graph for this function:

void gvt_init_clear ( void )

Forcely extract GVT-init message from MPI.

This function synchronously extracts messages related to GVT initiation from the MPI library. This should be called as a fallback strategy if gvt_init_pending() determined that a clean shutdown of the communication subsystem is not possible at present time.

Definition at line 491 of file gvt.c.

Here is the caller graph for this function:

bool gvt_init_pending ( void )

Check if there are pending GVT-init messages around.

This function tells whether some kernel is still waiting for some GVT message to be sent around, related to GVT initiation. This is used when shutting down the communication subsystem to avoid deadlock in some main loop of some simulation kernel.

Returns: true if there is some GVT-related message still pending, false otherwise.

Definition at line 477 of file gvt.c.

Here is the call graph for this function:

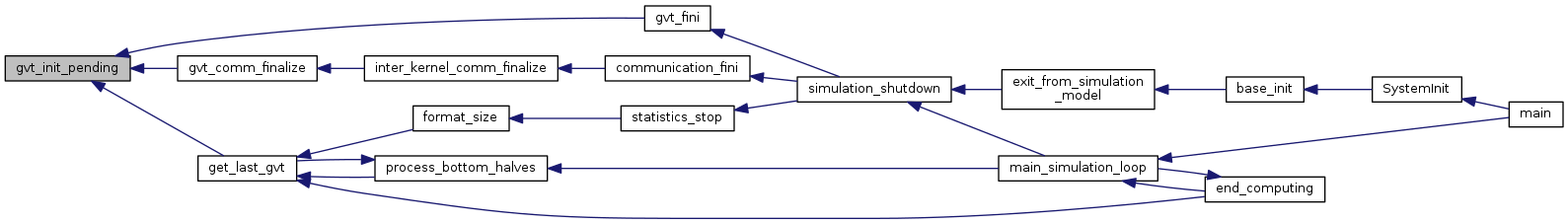

Here is the caller graph for this function:

bool gvt_redux_completed ( void )

Check if final GVT reduction is complete.

A call to this function, issued after a call to join_gvt_redux() will tell whether the final phase of the GVT reduction is complete, and the simulation kernel instance can safely access reduced_gvt to pick the newly-reduced value of the GVT.

This function is thread safe, so it can be called by multiple threads at one. A spinlock guard ensures that only one thread at a time performs this operation.

Returns: true if the GVT reduction operation associated with the last round is completed, false otherwise.

Definition at line 539 of file gvt.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void join_gvt_redux ( simtime_t local_vt )

Reduce the GVT value.

A call to this function can be issued only after that all threads on all simulation kernels have agreed upon a local candidate for the GVT value, and this value has been posted by some thread in local_vt_buff.

The goal of this function is to use an All Reduce non-blocking primitive to compute the minimum among the values which have been posted by all kernel instances in local_vt_buff.

Eventually, the minimum will be stored in reduced_gvt of all kernel instances.

Definition at line 515 of file gvt.c.

Here is the caller graph for this function:

void join_white_msg_redux ( void )

Join the white message reduction collective operation.

All kernels will share eachother the number of white message sent during the last white phase.

This is an asyncronous function and the actual completion of the collective reduction can be tested through the white_msg_redux_completed() function.

After the collective reduction will be terminated expected_white_msg will hold the number of white message sent by all the other kernel to this during the last white phase.

Definition at line 301 of file gvt.c.

Here is the caller graph for this function:

simtime_t last_reduced_gvt ( void )

Return the last GVT value.

This function returns the last GVT value which all the threads from all simulation kernel instances have agreed upon.

It is safe to call this function also while a GVT reduction operation is taking place.

Returns: The current value of the GVT

Definition at line 563 of file gvt.c.

Here is the caller graph for this function:

void register_incoming_msg ( const msg_t * msg )

Register an incoming message, if necessary.

Any message being received by a simulation kernel instance should be passed to this function, right before being registered into any queue.

In this way, if the destination kernel is in a white phase, the total number of white messages received can be incremented. Consistency is ensured by the fact that atomic counters are used, making this function inherently thread-safe.

Parameters

msg	The message to register as an incoming message.

Definition at line 623 of file gvt.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void register_outgoing_msg ( const msg_t * msg )

Register an outgoing message, if necessary.

Any time that a simulation kernel is sending a message towards a remote simulation kernel instance, the message should be passed to this function beforehand.

In this way, if the thread which sends the message is in a red phase, the minimum timestamp of red messages sent aroung is updated.

On the other hand, if the thread which sends the message is in a white phase, the counter of white messages sent towards the destination kernel is increased.

All this is fundamental information to ensure that the GVT reduction is consistent.

Parameters

msg	The message to register as an outgoing message.

Definition at line 589 of file gvt.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void wait_white_msg_redux ( void )

Wait for the completion of wait message reduction.

This function returns only when the white message reduction operation currently being carried out is completed.

Warning: This is a blocking operation.

Definition at line 349 of file gvt.c.

Here is the caller graph for this function:

bool white_msg_redux_completed ( void )

Test completion of white message reduction collective operation.

This function checks whether the asynchronous collective operation which counts whether the expected number of white messages has been received is completed.

This can be safely invoked concurrently by multiple worker threads, as a lock guard is used to ensure that only one thread at a time performs the check.

Returns: true if the reduction operation is completed, false otherwise.

Definition at line 328 of file gvt.c.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

int expected_white_msg

static

Number of expected white message to be received by this kernel before partecipating to the next GVT reduction

Definition at line 96 of file gvt.c.

MPI_Request* gvt_init_reqs

static

A vector of MPI asynchronous operations used to communicate with all kernel instances in the distributed run in order to initiate the GVT reduction protocol.

Definition at line 155 of file gvt.c.

unsigned int gvt_init_round

static

This variable is used to keep track of what round of GVT reduction we are actually starting. This is used also to make a sanity check on whether we are starting a new GVT reduction while the previous one is still pending.

Definition at line 163 of file gvt.c.

MPI_Comm gvt_reduction_comm

static

Separate MPI communicator to carry out the reduction of the GVT.

Definition at line 127 of file gvt.c.

spinlock_t gvt_reduction_lock

static

Spinlock guard used to ensure that only one thread at a time attempts to perform check operations on the reduction of the GVT.

Definition at line 133 of file gvt.c.

MPI_Request gvt_reduction_req

static

MPI Request operation to implement the distributed reduction of the current GVT value.

Definition at line 122 of file gvt.c.

simtime_t local_vt_buff

static

In the end, the GVT reduction is implemented using an MPI All Reduce. This primitive requires some stable buffer in memory to keep the values to be reduced across all ranks. This is a global variable in which each kernel instance places its proposal for the GVT, which is reduced using MPI all reduce.

Definition at line 142 of file gvt.c.

simtime_t reduced_gvt

static

This is the target temporary buffer in which MPI all reduce will place the reduced GVT value.

Definition at line 148 of file gvt.c.

phase_colour* threads_phase_colour

Colour phase of each thread. This is a dynamically sized array which tells the current execution phase of each thread (white or red).

Definition at line 48 of file gvt.c.

atomic_t white_0_msg_recv

static

Counter of received white messages for the first white phase in a period of three. This is pointed to by white_msg_recv when relating to the current white phase.

Definition at line 74 of file gvt.c.

atomic_t white_1_msg_recv

static

Counter of received white messages for the second white phase in a period of three. This is pointed to by white_msg_recv when relating to the current white phase.

Definition at line 81 of file gvt.c.

MPI_Comm white_count_comm

static

Separate MPI communicator to carry out the reduction of white messages. This communicator lives for the whole duration of the simulation.

Definition at line 109 of file gvt.c.

spinlock_t white_count_lock

static

Spinlock guard used to ensure that only one thread at a time attempts to perform check operations on the reduction of white messages.

Definition at line 116 of file gvt.c.

MPI_Request white_count_req

static

MPI Request operation to implement the asynchronous counting of white messages

Definition at line 102 of file gvt.c.

volatile atomic_t* white_msg_recv

There are multiple incarnations of a white phase, namely the white phase before a red phase is different from the white phase after that same red phase. At the end, we can reduce the multiple incarnations to only two (the third white phase appearing in the execution can be merged with the first, as the second one in between ensures that no pending action on the first phase is present).

This aspect is implemented using two different atomic counters of white messages, so that white_msg_recv must always point to the actual counter of white message received by the current kernel that have been sent during the last global white phase. It will point either to white_0_msg_recv or to white_1_msg_recv.

Definition at line 67 of file gvt.c.

atomic_t* white_msg_sent

static

Number of white message sent from this kernel to all the others during the last white phase

Definition at line 87 of file gvt.c.

Functions

Variables

Detailed Description

Function Documentation

Variable Documentation
