scheduler.h File Reference

The ROOT-Sim scheduler main module header. More...

#include <ROOT-Sim.h>
#include <core/core.h>
#include <queues/queues.h>
#include <communication/communication.h>
#include <scheduler/stf.h>
#include <arch/ult.h>
#include <scheduler/process.h>

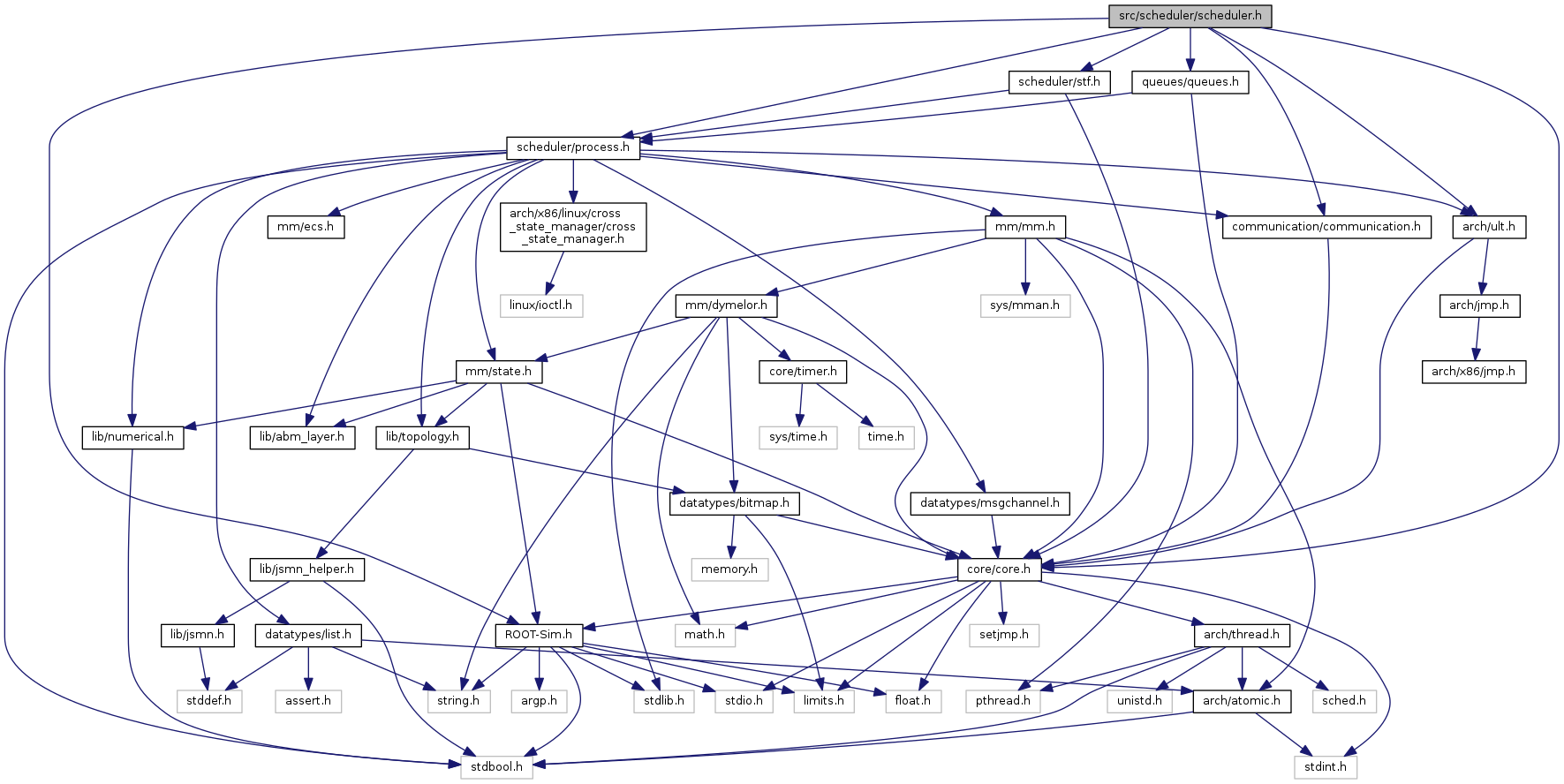

Include dependency graph for scheduler.h:

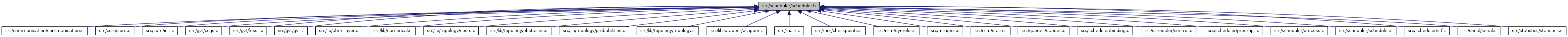

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	_SCHEDULER_H_
#define	MAX_CONSECUTIVE_IDLE_CYCLES   1000
	This macro defines after how many idle cycles the simulation is stopped.
#define	switch_to_platform_mode()
#define	switch_to_application_mode()   platform_mode = false

Enumerations
enum	{ SCHEDULER_INVALID = 0, SCHEDULER_STF }

Functions
void	scheduler_init (void)
void	scheduler_fini (void)
void	schedule (void)
void	schedule_on_init (struct lp_struct *next)
void	initialize_worker_thread (void)
void	activate_LP (struct lp_struct *, msg_t *)
void	LP_main_loop (void *args)
bool	receive_control_msg (msg_t *)
bool	process_control_msg (msg_t *)
bool	reprocess_control_msg (msg_t *)
void	rollback_control_message (struct lp_struct *current, simtime_t)
bool	anti_control_message (msg_t *msg)
void	preempt_init (void)
void	preempt_fini (void)
void	reset_min_in_transit (unsigned int)
void	update_min_in_transit (unsigned int, simtime_t)
void	enable_preemption (void)
void	disable_preemption (void)

Variables
__thread struct lp_struct *	current
	This is a per-thread variable pointing to the block state of the LP currently scheduled.
__thread msg_t *	current_evt
__thread unsigned int	n_prc_per_thread
	This is used to keep track of how many LPs were bound to the current KLT.
__thread volatile bool	platform_mode

Detailed Description

The ROOT-Sim scheduler main module header.

This module implements the schedule() function, which is the main entry point for all the schedulers implemented in ROOT-Sim, and several support functions which allow to initialize worker threads.

Also, the LP_main_loop() function, which is the function where all the User-Level Threads associated with Logical Processes live, is defined here.

Copyright

Copyright (C) 2008-2019 HPDCS Group https://hpdcs.github.io

This file is part of ROOT-Sim (ROme OpTimistic Simulator).

ROOT-Sim is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; only version 3 of the License applies.

ROOT-Sim is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with ROOT-Sim; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA

Author

Francesco Quaglia

Alessandro Pellegrini

Roberto Vitali

Definition in file scheduler.h.

Macro Definition Documentation

#define switch_to_platform_mode

(

)

Value:

do {\
                   if(current->state != LP_STATE_SILENT_EXEC) {\
                    platform_mode = true;\
                   }\
                  } while(0)

Definition at line 87 of file scheduler.h.

Enumeration Type Documentation

anonymous enum

Enumerator
SCHEDULER_INVALID	By convention 0 is the invalid field
SCHEDULER_STF	Smallest Timestamp First Scheduler's Code

Definition at line 52 of file scheduler.h.

Function Documentation

void activate_LP	(	struct lp_struct *	next,
		msg_t *	evt
	)

This function is the application-level ProcessEvent() callback entry point. It allows to specify which lp must be scheduled, specifying its lvt, its event to be executed and its simulation state. This provides a general entry point to application-level code, to be used if the LP is in forward execution, in coasting forward or in initialization.

Author

Alessandro Pellegrini

Date

November 11, 2013

Parameters

next	A pointer to the lp_struct of the LP which has to be activated
evt	A pointer to the event to be processed by the LP

Definition at line 260 of file scheduler.c.

Here is the caller graph for this function:

void LP_main_loop

(

void *

args

)

This is a LP main loop. It s the embodiment of the usrespace thread implementing the logic of the LP. Whenever an event is to be scheduled, the corresponding metadata are set by the schedule() function, which in turns calls activate_LP() to execute the actual context switch. This ProcessEvent wrapper explicitly returns control to simulation kernel user thread when an event processing is finished. In case the LP tries to access state data which is not belonging to its simulation state, a SIGSEGV signal is raised and the LP might be descheduled if it is not safe to perform the remote memory access. This is the only case where control is not returned to simulation thread explicitly by this wrapper.

Parameters

args	arguments passed to the LP main loop. Currently, this is not used.

Definition at line 140 of file scheduler.c.

Here is the call graph for this function:

void schedule

(

void

)

This function checks wihch LP must be activated (if any), and in turn activates it. This is used only to support forward execution.

Author

Alessandro Pellegrini

Definition at line 321 of file scheduler.c.

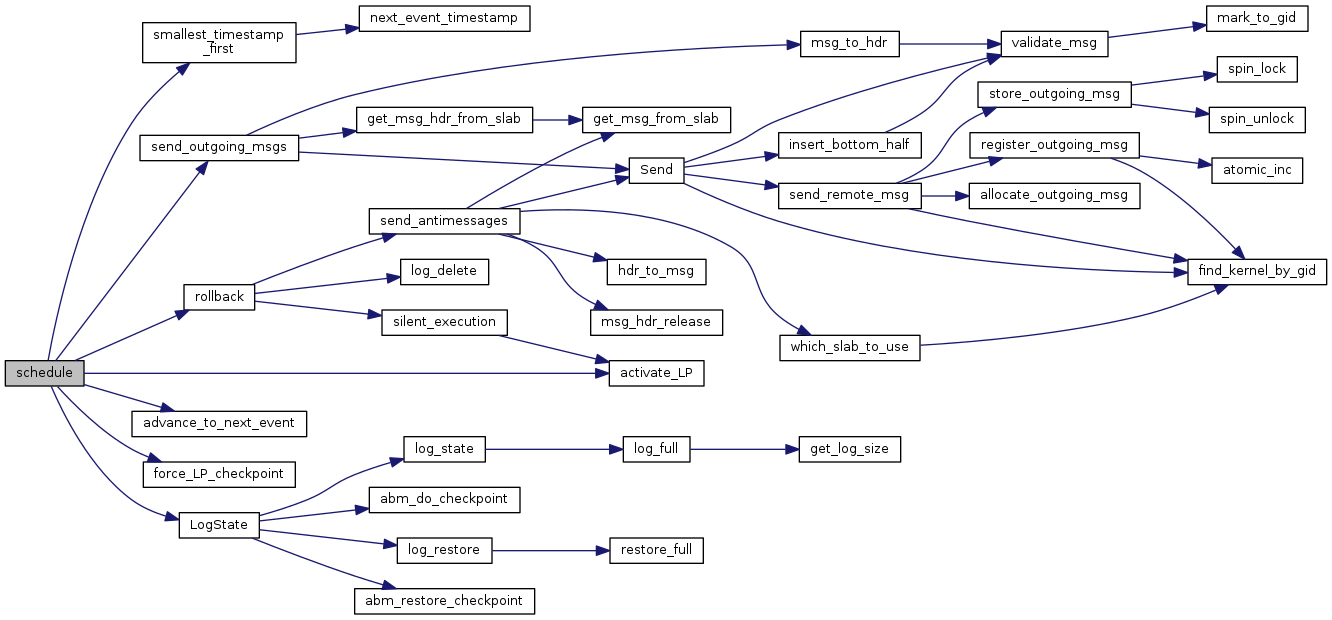

Here is the call graph for this function:

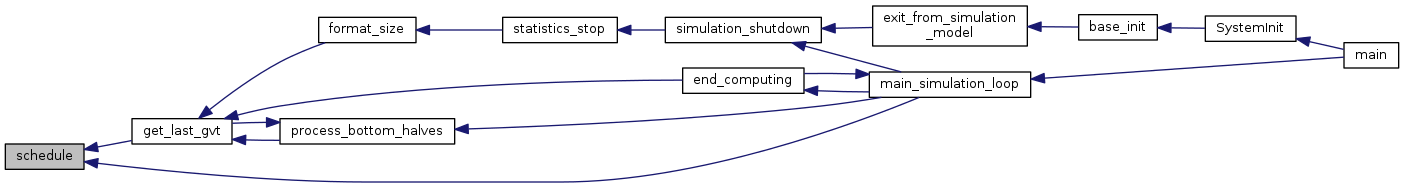

Here is the caller graph for this function:

void scheduler_fini

(

void

)

This function finalizes the scheduler

Author

Alessandro Pellegrini

Definition at line 105 of file scheduler.c.

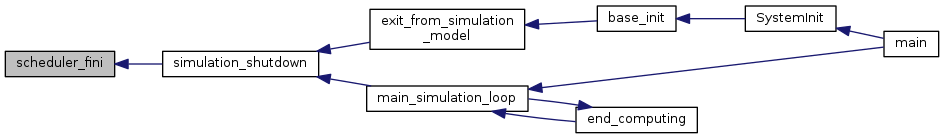

Here is the caller graph for this function:

Variable Documentation

__thread msg_t* current_evt

This is a per-thread variable telling what is the event that should be executed when activating an LP. It is incorrect to rely on current->bound, as there are cases (such as the silent execution) in which we have a certain bound set, but we execute a different event.

Definition at line 83 of file scheduler.c.
