state.h File Reference

LP state management. More...

#include <ROOT-Sim.h>
#include <core/core.h>
#include <lib/numerical.h>
#include <lib/abm_layer.h>
#include <lib/topology.h>

Include dependency graph for state.h:

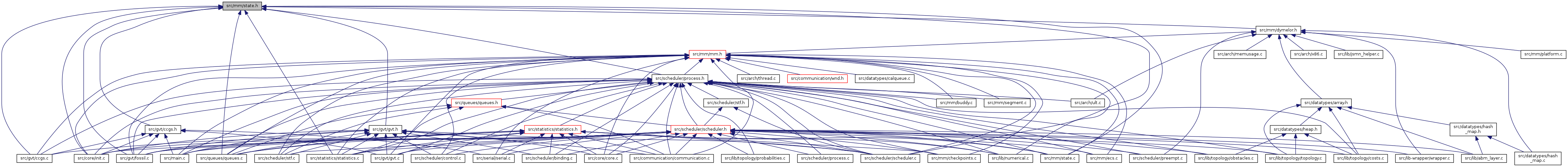

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	_state_t
	Structure for LP's state. More...

Typedefs
typedef struct _state_t	state_t
	Structure for LP's state.

Enumerations
enum	{ STATE_SAVING_INVALID = 0, STATE_SAVING_COPY, STATE_SAVING_PERIODIC }

Functions
bool	LogState (struct lp_struct *)
void	RestoreState (struct lp_struct *, state_t *restore_state)
void	rollback (struct lp_struct *)
state_t *	find_time_barrier (struct lp_struct *, simtime_t time)
void	clean_queue_states (struct lp_struct *, simtime_t new_gvt)
void	rebuild_state (struct lp_struct *, state_t *state_pointer, simtime_t time)
void	set_checkpoint_period (struct lp_struct *, int period)
void	force_LP_checkpoint (struct lp_struct *)
unsigned int	silent_execution (struct lp_struct *, msg_t *evt, msg_t *final_evt)

Detailed Description

LP state management.

The state module is responsible for managing LPs' simulation states. In particular, it allows to take a snapshot, to restore a previous snapshot, and to silently re-execute a portion of simulation events to bring a LP to a partiuclar LVT value for which no simulation state is available in the log chain.

Copyright

Copyright (C) 2008-2019 HPDCS Group https://hpdcs.github.io

This file is part of ROOT-Sim (ROme OpTimistic Simulator).

ROOT-Sim is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; only version 3 of the License applies.

ROOT-Sim is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with ROOT-Sim; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA

Author

Francesco Quaglia

Alessandro Pellegrini

Definition in file state.h.

Enumeration Type Documentation

anonymous enum

Enumerator
STATE_SAVING_INVALID	By convention 0 is the invalid field
STATE_SAVING_COPY	Copy State Saving checkpointing interval
STATE_SAVING_PERIODIC	Periodic State Saving checkpointing interval

Definition at line 42 of file state.h.

Function Documentation

state_t* find_time_barrier	(	struct lp_struct *	lp,
		simtime_t	simtime
	)

This function computes a time barrier, namely the first state snapshot which is associated with a simulation time <= than the simtime value passed as an argument. The time barrier, in the runtime environment, is used to safely install a new computed GVT.

Author

Francesco Quaglia

Alessandro Pellegrini

Parameters

lp	A pointer to the lp_struct of the LP for which we are looking for the current time barrier
simtime	The simulation time to be associated with a state barrier

Returns

A pointer to the state that represents the time barrier

Definition at line 282 of file state.c.

Here is the caller graph for this function:

void force_LP_checkpoint

(

struct lp_struct *

lp

)

This function tells the logging subsystem to take a LP state log upon the next invocation to LogState(), independently of the current checkpointing period

Author

Alessandro Pellegrini

Parameters

lp	A pointer to the lp_struct of the LP for which the checkpoint shold be forced after the next call to LogState()

Definition at line 364 of file state.c.

Here is the caller graph for this function:

bool LogState

(

struct lp_struct *

lp

)

This function is used to create a state log to be added to the LP's log chain

Parameters

lp	A pointer to the lp_struct of the LP for which a checkpoint is to be taken.

Definition at line 55 of file state.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void rollback

(

struct lp_struct *

lp

)

This function rolls back the execution of a certain LP. The point where the execution is rolled back is identified by the event pointed by the rollback_bound entry in the LP control block. For a rollback operation to take place, that pointer must be set before calling this function.

Author

Francesco Quaglia

Alessandro Pellegrini

Parameters

lp	A pointer to the lp_struct of the LP to rollback

Definition at line 220 of file state.c.

Here is the call graph for this function:

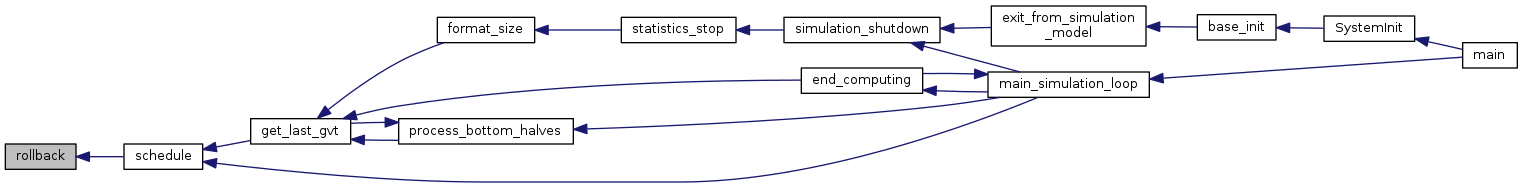

Here is the caller graph for this function:

void set_checkpoint_period	(	struct lp_struct *	lp,
		int	period
	)

This function sets the checkpoint period

Author

Francesco Quaglia

Alessandro Pellegrini

Parameters

lp	A pointer to the LP's lp_struct which should have its checkpoint period changed.
period	The new checkpoint period

Definition at line 349 of file state.c.

unsigned int silent_execution	(	struct lp_struct *	lp,
		msg_t *	evt,
		msg_t *	final_evt
	)

This function bring the state pointed by "state" to "final time" by re-executing all the events without sending any messages

Author

Francesco Quaglia

Alessandro Pellegrini

Parameters

lp	A pointer to the LP's lp_struct for which we want to silently reprocess already-executed events
evt	A pointer to the event from which start the re-execution
final_evt	A pointer to the first event which should not be reprocessed in silent execution

Returns

The number of events re-processed during the silent execution

Definition at line 173 of file state.c.

Here is the call graph for this function:

Here is the caller graph for this function:
