Statistics module. More...

#include <scheduler/process.h>

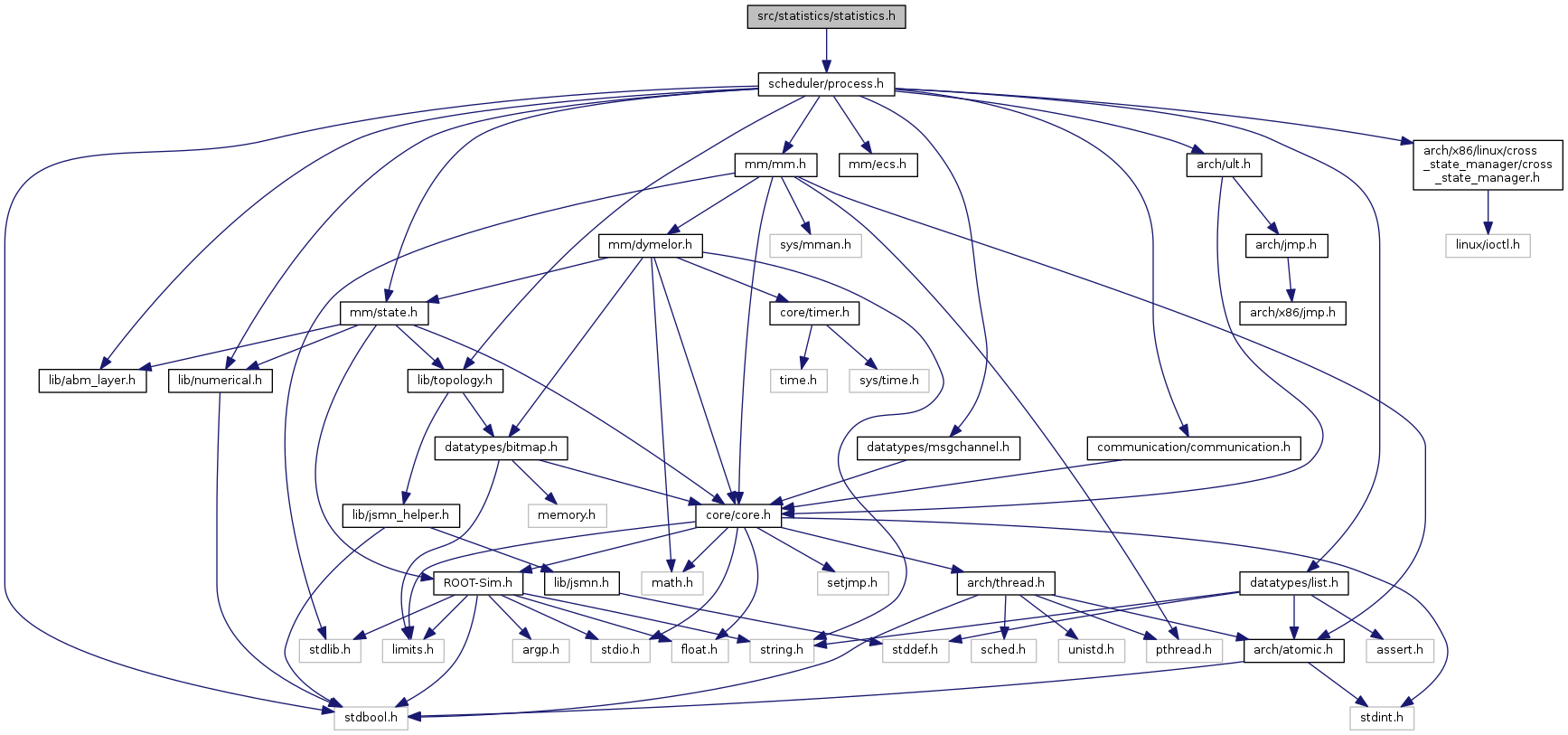

Include dependency graph for statistics.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	stat_t

Macros
#define	DEFAULT_OUTPUT_DIR "outputs"
	This macro specified the default output directory, if nothing is passed as an option.

#define	MAX_PATHLEN 512
	Longest length of a path.

#define	STAT_FILE_NAME_NODE "execution_stats"

#define	STAT_FILE_NAME_GLOBAL "global_execution_stats"

#define	STAT_FILE_NAME_THREAD "local_stats"

#define	STAT_FILE_NAME_GVT "gvt"

#define	STAT_FILE_NAME_LP "lps"

Typedefs
typedef double	vec_double

Enumerations
enum	stat_file_unique { STAT_FILE_U_NODE = 0, STAT_FILE_U_GLOBAL, NUM_STAT_FILE_U }

enum	stat_file_per_thread { STAT_FILE_T_THREAD = 0, STAT_FILE_T_GVT, STAT_FILE_T_LP, NUM_STAT_FILE_T }

enum	stat_msg_t { STAT_ANTIMESSAGE = 1001, STAT_EVENT, STAT_COMMITTED, STAT_ROLLBACK, STAT_CKPT, STAT_CKPT_TIME, STAT_CKPT_MEM, STAT_RECOVERY, STAT_RECOVERY_TIME, STAT_EVENT_TIME, STAT_IDLE_CYCLES, STAT_SILENT, STAT_GVT_ROUND_TIME, STAT_GET_SIMTIME_ADVANCEMENT, STAT_GET_EVENT_TIME_LP }

enum	stats_levels { STATS_INVALID = 0, STATS_GLOBAL, STATS_PERF, STATS_LP, STATS_ALL }

Functions
void	_mkdir (const char *path)

void	print_config (void)

void	statistics_init (void)

void	statistics_fini (void)

void	statistics_start (void)

void	statistics_stop (int exit_code)

void	statistics_on_gvt (double gvt)

void	statistics_on_gvt_serial (double gvt)

void	statistics_post_data (struct lp_struct *, enum stat_msg_t type, double data)

void	statistics_post_data_serial (enum stat_msg_t type, double data)

double	statistics_get_lp_data (struct lp_struct *, unsigned int type)

Detailed Description

Statistics module.

All facitilies to collect, gather, and dump statistics are implemented in this module. The statistics subsystem relies on the struct stat_t type to keep the relevant fields. Every statistic variable must be a double, because the aggregation functions are type-agnostic and consider every value to be a double. This allows to speedup some aggregations by relying on vectorized instructions.

There are two main entry points in this module:

statistics_post_data() can be called anywhere in the runtime library, allowing to specify a numerical code which identifies some statistic information. A value can be also passed, which is handled depending on the type of statistics managed. This function allows to update statistics values for each LP of the system.
statistics_get_lp_data() can be called to retrieve current per-LP statistical values. This is useful to implement autonomic policies which self-tune the behaviour of the runtime depending on, e.g., workload factors.

At the end of the simulation (or if the simulation is stopped), this module implements a coordination protocol to reduce all values, both at a machine level, and among distributed processes (using MPI).

Copyright: Copyright (C) 2008-2019 HPDCS Group https://hpdcs.github.io

This file is part of ROOT-Sim (ROme OpTimistic Simulator).

ROOT-Sim is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; only version 3 of the License applies.

ROOT-Sim is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with ROOT-Sim; if not, write to the Free Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA

Author: Andrea Piccione; Alessandro Pellegrini; Tommaso Tocci; Roberto Vitali

Definition in file statistics.h.

Enumeration Type Documentation

enum stats_levels

Enumerator
STATS_INVALID	By convention 0 is the invalid field
STATS_GLOBAL	xxx documentation
STATS_PERF	xxx documentation
STATS_LP	xxx documentation
STATS_ALL	xxx documentation

Definition at line 105 of file statistics.h.

Function Documentation

void _mkdir ( const char * path )

This is an helper-function to allow the statistics subsystem create a new directory

Author: Alessandro Pellegrini

Parameters

path	The path of the new directory to create

Definition at line 198 of file statistics.c.

Here is the caller graph for this function:

void statistics_fini ( void )

This function finalize the Statistics subsystem

Author: Alessandro Pellegrini

Definition at line 736 of file statistics.c.

Here is the caller graph for this function:

void statistics_init ( void )

This function initializes the Statistics subsystem

Author: Alessandro Pellegrini

Definition at line 660 of file statistics.c.

Here is the call graph for this function:

Here is the caller graph for this function:

void statistics_start ( void )

This function registers when the actual simulation is starting.

Definition at line 286 of file statistics.c.

Here is the caller graph for this function:

void statistics_stop ( int exit_code )

This function print in the output file all the statistics associated with the simulation

Author: Francesco Quaglia; Roberto Vitali; Alessandro Pellegrini

Parameters

exit_code The exit code of the simulator, used to display a happy or sad termination message

Definition at line 442 of file statistics.c.

Here is the call graph for this function:

Here is the caller graph for this function:
